产品报格参考/￥4900.00

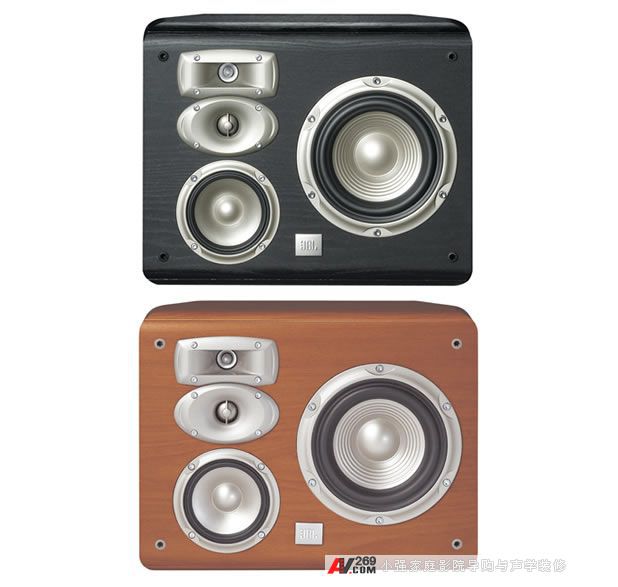

3 路 5-1/4" (130mm) 书架/壁挂式附属扬声器L810 书架/壁挂式扬声器带有视频屏蔽，配有 PolyPlas™ 低音和中音扬声器以及纯钛高音扬声器，可提供精准的性能且极大地减少了失真，从而呈现难以置信的逼真音色。 5-1/4" 低音扬声器可提供清澈、准确的低音响应，而超高频驱动器则可将响应扩展到 40kHz。 非常适合 SACD 或 DVD 音频录制。 高音扬声器安装在我们的专有 Elliptical Oblate Spheroidal (EOS™) 波导管中，可改善视听室任何位置的高频散射。 纤细的壁挂式 5" 深外壳可为最新的平板电视锦上添花，也使 L810 成为理想的环绕声道解决方案。
Specifications
Description 3-Way 5-1/4" (130mm) Bookshelf/Wall-Mount Satellite Speaker
Series Studio L
Finish Black Ash
Frequency Response 60Hz – 40kHz (±3dB)
Crossover Frequencies 3.5kHz, 20kHz
Power Handling 75 Watts Continuous / 300 Watts Peak
Max. Recommended Amplifier Power 150W
Low-Frequency Transducer 5-1/4" (130mm) PolyPlas™ cone with rubber surround, cast-aluminum chassis, HeatScape™ motor structure, Symmetrical Field Geometry™ (SFG™), oversized Kapton® voice coil, magnetic shorting ring
High-Frequency Transducer 1" (25mm) Pure-titanium dome in JBL EOS™ waveguide, cast-aluminum chassis
Sensitivity (2.83V/1m) 88dB
Nominal Impedance 8 Ohms
Dimensions (H x W x D) 14-1/4" x 12-1/4" x 5" / 362mm x 311mm x 127mm
Weight 14 lb / 6.4kg
