美国Revel B10超重低音炮介绍 10英寸低音单元

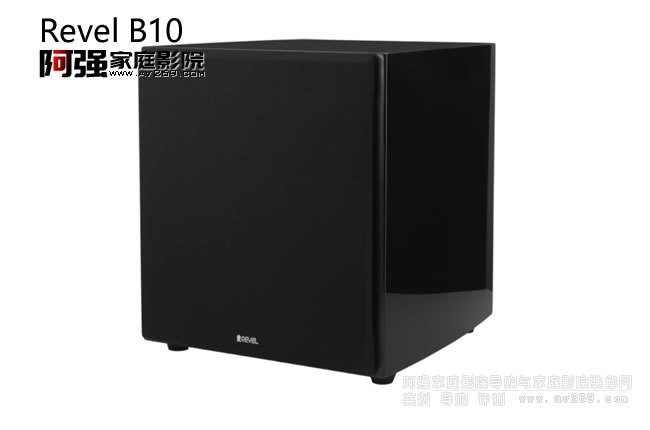

美国Revel B10超重低音炮

规格:800W 10〞有源低音道扬声器
.驱动组件:10〞混合纤维涂层锥盆,采用压铸框架低音扬声器
.滤波器网络:三分频高阶声波响应@375Hz、2.45KHz
.低频扩展:-10dB@29Hz   -6dB@32Hz   -3dB@35Hz
.功率范围:800WD类功放
.尺寸:41.8cm x 37.7cm x 39.2cm
.重量:24Kg

美国Revel B10超重低音炮介绍 10英寸低音单元

B10

The B10 is a powerful 800 watt 10” powered subwoofer that was designed to provide powerful and clear low frequency response. It will add essential bass response to any music or home theater system.

The 800 Watt RMS (1600 Watt peak) amplifier powers the voice coil to provide ample power for the large diaphragm area and long-excursion capability.

By repositioning the voice coil in the woofer, Revel engineers discovered they could improve the symmetry of the woofer displacement and thereby lower distortion. Additionally, asymmetry attributed to spider non-linearity can also lead to higher distortion. This was solved by adjusting the spider progression to greatly improve the symmetry and as a result, lowered distortion. To finish the enclosure we selected high gloss black and white finishes to highlight the features of this beautiful subwoofer.
HIGHLIGHTS

Derived from Revel’s award-winning Performa3 Series Loudspeakers
10" Coated Fiber-Composite Cone
Constant Pressure Gradient Port Design
Detectable grilles with brushed metallic logos
High-gloss Black and High-gloss White painted finishes
800 Watt 10” Powered Subwoofer
Single band parametric EQ

Specifications

DESCRIPTION
800 Watt 10” Powered Subwoofer
LOW-FREQUENCY DRIVER COMPONENTS
10” Coated Fiber-Composite Cone, Cast-Frame Woofer
INPUT CONNECTIONS
L/R Stereo RCA Input
RECOMMENDED AMPLIFIER POWER
800W Class D Amplifier
CROSSOVER FREQUENCIES
Variable 50 – 150Hz
LOW FREQUENCY EXTENSION
35Hz, 32Hz, 29Hz (-3 dB, -6 dB, -10 dB)
ENCLOSURE TYPE
Bass-Reflex via Rear-Firing Port
DIMENSIONS
16.45" x 14.85"x 15.45" (41.8cm x 37.7cm x 39.2cm) —Including Feet
WEIGHT
53 lbs
