英国宝华B&W CCM8.5 D定制嵌入音箱介绍

产品报格参考/个¥33600.00

英国宝华B&W CCM8.5 D定制嵌入音箱英国宝华B&W CCM8.5 D定制嵌入音箱

CCM8.5 D是一种提供高质量的双向天花板扬声器,它的特点是钻石高音和7英寸带反共振插头的低音/中程连续驱动。

Technical Specifications
Description 2-way in-ceiling loudspeaker
Technical features Aluminium Tweeter ‘wing’
Rotatable aluminium
mini-baffle allows ‘toe-in’
Diamond Dome, Nautilus™
tube-loaded tweeter
Anti-resonance plug
Flowport™
Drive units 1x ø25mm (1in) Diamond Dome,
Nautilus™ tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass/
midrange driver with anti-resonance plug
Frequency range (-6dB) 35Hz - 35kHz
Recommended
Amplifier Power 120W
Sensitivity 88dB
Nominal Impedance 8Ω

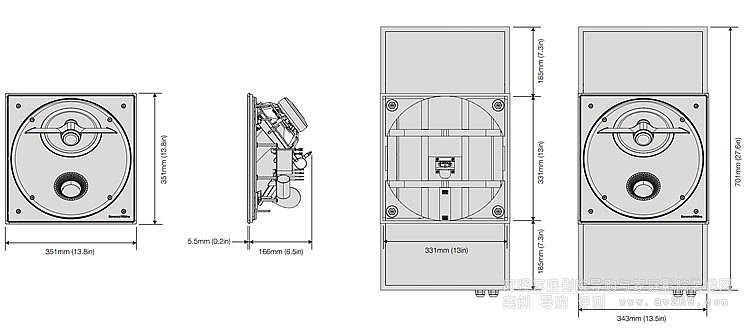

Frame (width/height) 351mm (13.8in)
Cut-out (width/height) 331mm (13in)
Protrusion 8mm (0.3in)
Net weight 5kg
Back Box BB CCM8.5

以上影音图文、参数及报价等信息仅供参考!
