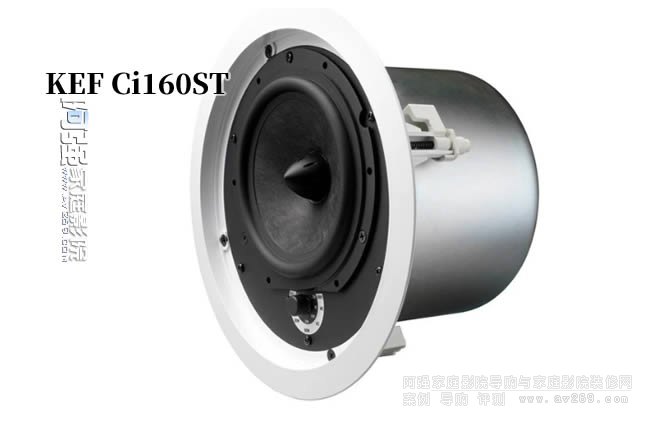

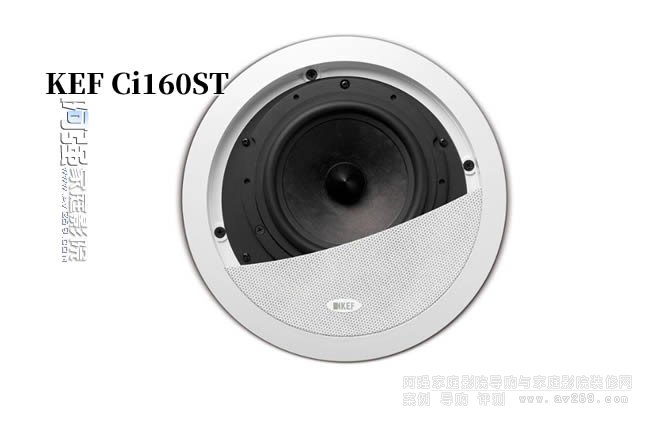

KEF Ci160ST可定压式背景音乐吸顶音箱

KEF Ci160ST可定压式背景音乐吸顶音箱

KEF Ci160ST可定压式背景音乐吸顶音箱,Ci 商用系列将耐用性、可靠性、UL 认证 KEF 无可置疑的音频血统及稳定的高品质性能结合在一起,成为满足各种项目工程需求的优秀天花式扬声器产品。

KEF Ci160ST可定压式背景音乐吸顶音箱

Ci160ST 主要特色
整合防火金属音箱
UL2043 认证,用于空气流通的空间
UL1480-5 认证,用于防火警示系统
可选择 8ohm 或 70/100V 操作的前置开关
包含一组用于吊顶或硬质吸顶的工具
Reproducing lower frequencies with confident accuracy is critical for achieving a satisfyingly full-bodied sound in public spaces, and with the dedicated long-throw 160mm (6.5in.) bass driver from KEF’s renowned iQ range, the Ci160ST delivers gloriously extended, articulate and distortion-free bass.

The tonal match is perfect with the rest of the new Ci Commercial Series, which are designed specifically for foreground music and music/paging applications in retail, commercial and hospitality environments. With back can, 70V/100V multi-tap transformers for distributed line systems and UL2043 safety approval for use in plenum spaces and UL1480-5 for fire protection signalling systems, it meets every requirement for interior use. The bezels and grilles can of course be finished to blend unobtrusively with the décor –and with KEF’s ingeniously simple fixing system, the units are exceptionally easy for the contractor to install.

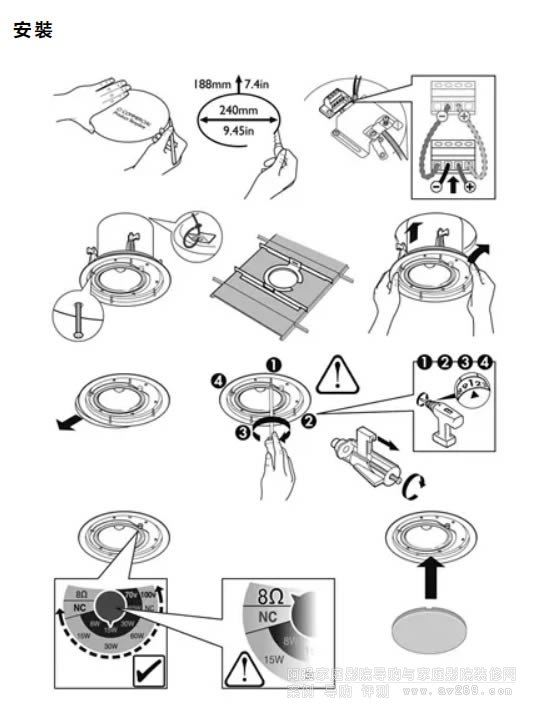

The Ci160ST is supplied with a C-ring mounting bracket and tile hanger for use in suspended ceilings. Like all KEF loudspeakers, this formidably competent subwoofer is built to KEF’s traditional high standards for reliable long term use.
应用场景:
对于要求高保真性能的高音质音乐和语音扩音应用场所,Ci 系列的 Ci160ST 扬声器无疑是最理想的选择。如:
休閒场所、酒吧、精品店
家庭影院系统
多房间系统
会议室和办公室
机场、会议中心、酒店
演出剧院/音乐厅临时使用
礼拜堂
体育赛场

阻抗
4 Ohms

灵敏度
85dB (2.83V/ 1m)

频率响应
60 - 130Hz (+/-6dB) With back can/rear enclosure

分频点
2.3kHz

驱动单元LF: 160mm

建议输出功率20 - 100W

主要特点
Passive Subwoofer, UL2043 & UL1480-5 approved, 70V: 7.5W, 15W, 30W, 60W / 100V: 15W, 30W, 60W
图样尺寸
Diameter : 240mm (9.45in.)

安装厚度
天花厚度(最大):38 毫米(1.5 英寸)
天花厚度(最小):7 毫米(0.28 英寸)

表面安装深度
With back can : 185mm (7.28in.)

淨重
3.4 kg (7.48 lbs)

单位
*以每个计算
以上影音图文、参数及报价等信息仅供参考!
